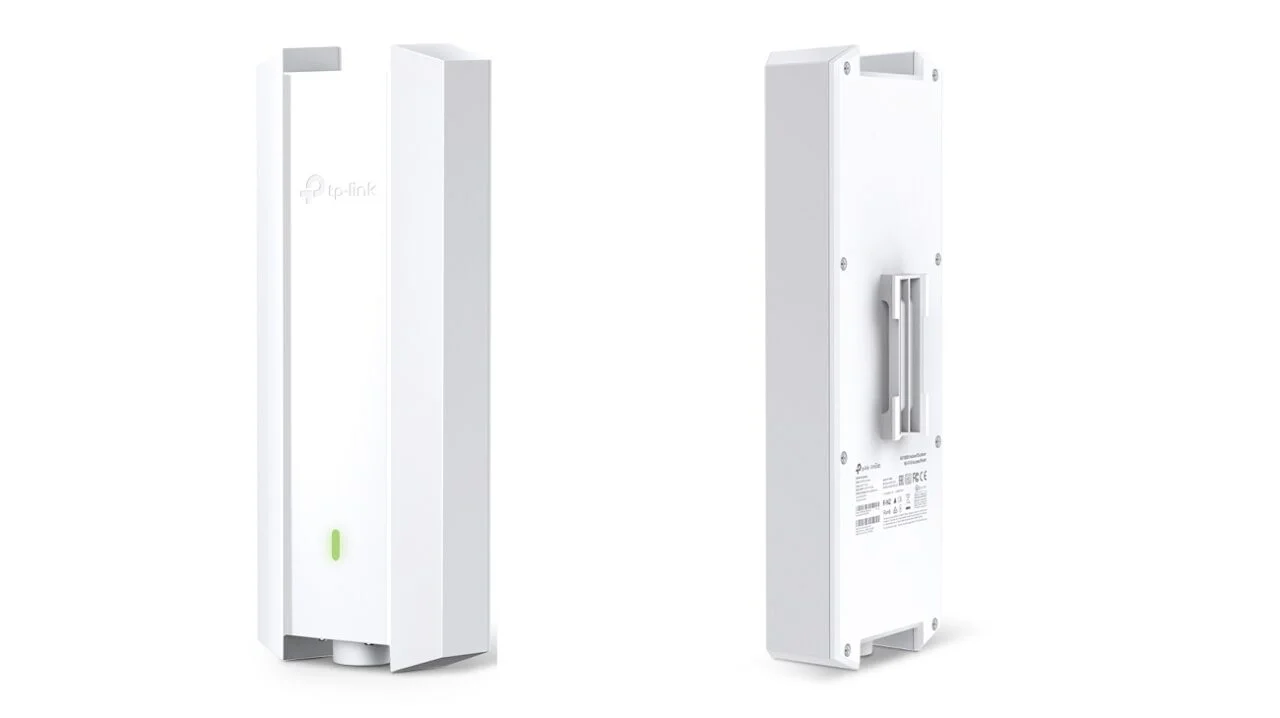

TP-Link EAP610-Outdoor

TP-Link EAP610-Outdoor – a new outdoor access point. What is it characterized by?

TP-Link has introduced the EAP610-Outdoor access point to the market. Thanks to resistance to weather conditions and the ability to serve many users at the same time, the device is intended for use in restaurant gardens, warehouses, production halls, as well as swimming pools and hotel terraces. What is the exact specification of the hardware?

TP-Link EAP610-Outdoor – specification

TP-Link EAP610-Outdoor specifications review test opinion

EAP610-Outdoor is a device that offers, among others total bandwidth up to 1800 Mb / s in two bands (up to 574 Mb / s in the 2.4 GHz band and up to 1201 Mb / s in the 5 GHz band). The model has a gigabit Ethernet port.

Connecting and powering the access point is possible with one network cable thanks to the support of PoE 802.3af standard and passive PoE with the injector included in the set. Weather conditions should not be a problem for the device – the manufacturer boasts an IP67 certificate.

For More Tech Reviews

TP-Link EAP610-Outdoor – basic information:

Ports1 Gigabit Ethernet port (IEEE802.3at and Passive PoE support)
ButtonsReset
Power• 802.3at PoE
• 48V / 0.5A Passive PoE (PoE adapter included)
Power consumption• EU: 12.5W (802.3at PoE or Passive PoE)
Dimensions (W x D x H)• 280.4 × 106.5 × 56.8 mm (without antenna and mounting kit)
Antenna• 2.4 GHz: 2 × 4 dBi
• 5 GHz: 2 × 5 dBi
Weatherproof housingIP67
InstallationWall / pole mounting (mounting hardware included)

TP-Link EAP610-Outdoor – wireless transmission:

Wireless standardsIEEE 802.11ax / ac / n / g / b / a
Working frequency2.4GHz, 5GHz
Transmission speed• 802.11ax: 8 Mb / s to 1201 Mb / s (MCS0-MCS11, NSS = 1 to 2 HE20 / 40/80)
• 802.11ac: 6.5 Mb / s to 867 Mb / s (MCS0-MCS9, NSS = 1 up to 2 VHT20 / 40/80)
• 802.11n: 6.5 Mb / s to 300 Mb / s (MCS0-MCS15, VHT 20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mb / s
• 802.11b: 1, 2, 5.5, 11 Mb / s
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mb / s
EIRP• CE: <20 dBm (2.4 GHz, EIRP), <30 dBm (5 GHz, EIRP)
• FCC: <25 dBm (2.4 GHz), <25 dBm (5 GHz)
Wireless transmission functions• 1024-QAM
• 4 times longer OFDM symbol
• OFDMA
• Multi-SSID (up to 16 SSID, 8 for each band)
• On / off. Wireless transmission
• Automatic channel selection
• Transmission power control
• QoS (WMM)
• MU-MIMO
• Smooth roaming **
• Omada Mesh **
• Band control
• Band load balancing
• Airtime Fairness
• Beamforming
• Speed ​​limiting
• Restart
schedule • Network schedule wireless
• Wireless statistics based on SSID / AP / client
Wireless transmission security• Authentication via welcome page **
• Access control
• MAC address filtering
• Wireless client isolation
• SSID to VLAN mapping
• Unauthorized AP detection
• 802.1X support
• WPA-Personal / Enterprise, WPA2-Personal / Enterprise, WPA3-Personal encryption / Enterprise

TP-Link EAP610-Outdoor – management:

Omada applicationYes
Central management• Cloud based Omada controller •
Omada hardware controller (OC300)
• Omada hardware controller (OC200)
• Omada software controller
Cloud AccessYes (via OC300, OC200 Controller, Omada Cloud-based Controller, or Omada Software Controller)
Email notificationsYes
Access control by MAC addressesYes
SNMPv1, v2c
System logYes
SSHYes
Browser managementYes
L3 managementYes
Multi-site managementYes
VLAN managementYes

The set includes, in addition to the device itself, a passive PoE adapter, power cord, mounting kits, waterproof kits, waterproof antenna and installation instructions.

The equipment works with Windows (XP, Vista, 7, 8, 10, 11) and Linux and can operate at temperatures from -30 to 70 degrees Celsius. The warranty for the device is 5 years.

source: press release
